Heat Shrinkable Sleeves for Directional Drilling: Protecting Weld Joints During Pull-Through

Why Weld Joints Are the Weakest Point in HDD Projects

Horizontal directional drilling (HDD) is now the preferred method for installing pipelines under rivers, highways, and urban areas. But it introduces one serious challenge: weld joints must survive the pull-through.

During pull-back, the pipeline is dragged through soil, rock, and bentonite slurry under heavy mechanical stress. Factory coating on the straight pipe holds up well. The field-applied coating at each weld joint does not. If that joint coating is damaged, corrosion starts at the weakest point—and repair after installation is extremely difficult.

This is why heat shrinkable sleeves designed specifically for HDD have become a standard specification worldwide.

What Makes HDD Sleeves Different?

A complete HDD sleeve system consists of three components working together.

1. The HDD Sleeve Itself
Installed over the weld joint as the primary corrosion protection layer. Available in fiber-reinforced type (breaking strength ≥2000 N, for high-stress pull-throughs) and standard type (tensile strength ≥17 MPa, elongation ≥400%, for less demanding crossings).

2. The Sacrificial Sleeve
Installed at the front edge of the HDD sleeve, in the pull direction. It absorbs abrasion during pull-through so the main sleeve underneath stays intact. Without it, the leading edge fails first.

3. Epoxy Primer
Applied to the steel surface before the sleeve. Ensures a strong, durable bond. Most field failures trace back to this step.

Key Performance

HDD sleeves withstand both mechanical stress and long-term environmental exposure. The fiber-reinforced type offers breaking strength ≥2000 N, while the standard type offers tensile strength ≥17 MPa and elongation ≥400%. Both types maintain a Vicat softening point above 90°C, resist embrittlement down to -65°C, and hold volume resistivity ≥1×10¹³ Ω·m. After 7-day chemical attack or 21-day heat aging at 150°C, the fiber-reinforced type still maintains breaking strength ≥1700 N.

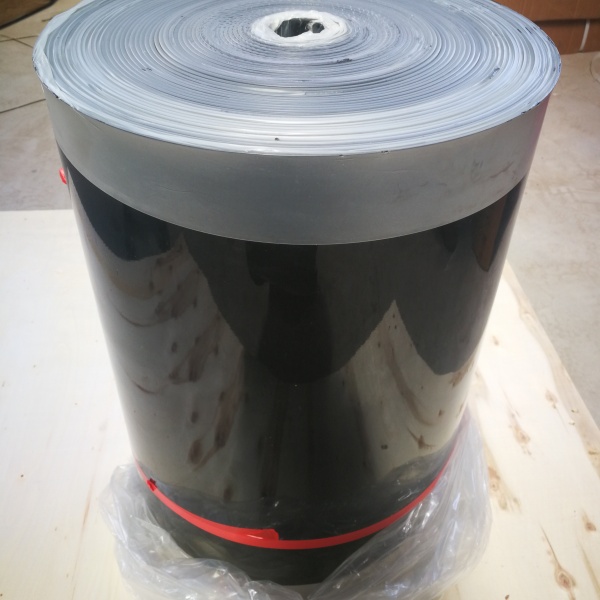

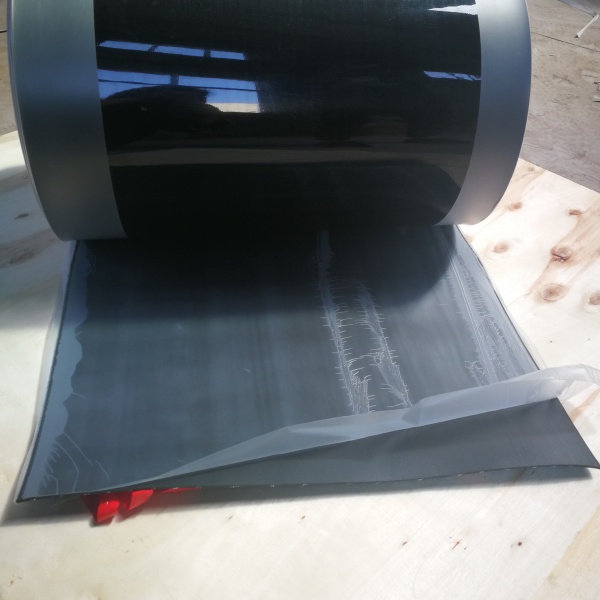

Visual Guide

Choosing the Right Sleeve

For high-abrasion, long-pull, or rocky soil conditions, choose the fiber-reinforced HDD sleeve with a sacrificial sleeve. For standard crossings, the standard HDD sleeve with a sacrificial sleeve is sufficient. For short pulls in benign soil, the standard HDD sleeve alone will work.

Conclusion

In directional drilling, the pipeline only gets one chance to be installed correctly. Once pulled through, there is no easy way to inspect or repair the joint coating. Specifying the right heat shrinkable sleeve system—correct sleeve type, sacrificial sleeve at the leading edge, and proper epoxy primer—is the difference between a pipeline that performs for decades and one that fails prematurely at a joint.
